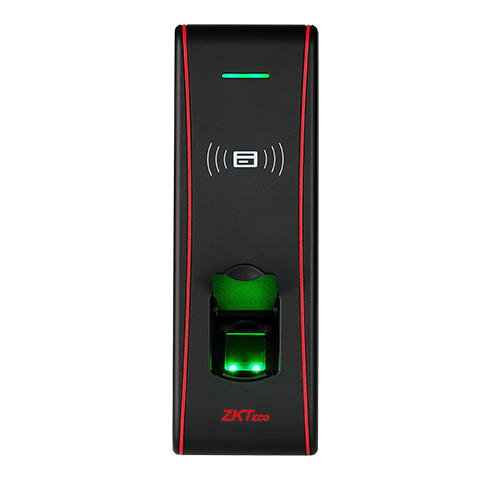

ZKTeco F16 Biometric Fingerprint Access & Time Attendance Terminal
Supplied, Installed & Supported by Rittotechnologies in Kenya — exclusively sourced from ZKTeco East Africa.
The ZKTeco F16 is a compact and high-performance biometric terminal that combines time attendance tracking and access control in one device. It features a fast fingerprint sensor, versatile connectivity, and easy-to-use interface, making it suitable for offices, schools, hospitals, and residential complexes.
Key Features and Specifications
Biometric and Card Access
Fingerprint Capacity: Up to 3,000 templates.
Optional Card Support: Stores up to 5,000 ID or MIFARE cards.
Advanced Sensor: Infrared fingerprint sensor with ZK Finger v10.0 algorithm for fast and accurate recognition.
As a result, users can be identified quickly and reliably.
Storage and Logs
Transaction Logs: Stores up to 30,000 attendance or access records.
Some versions can store up to 100,000 logs for larger organizations.
Therefore, security and attendance records are safely stored and easily accessible.
Display and User Interface
2.4-inch TFT color display with touch keypad for easy operation.
Intuitive menu system simplifies setup and daily use.
This ensures minimal training is required for staff.
Connectivity and Integration
Supports TCP/IP, RS485, and optional Wi-Fi.
USB Host port for offline data transfer.
Integrates with third-party systems via Wiegand I/O.
Built-in relay and auxiliary input for door sensors or emergency switches.
In addition, it supports features such as anti-passback, scheduled bell, automatic status switch, DST, T9 input, and optional printer support.
Performance and Build
Recognition speed: Under 1 second.
Power: 12V DC, 3A.
Operating conditions: 0°C – 45°C; 20%–80% humidity.
Dimensions: 158 × 75 × 20 mm.
These specifications make it reliable for daily operations in busy environments.
How the ZKTeco F16 Works
Enrollment – HR registers users through fingerprint or card.
Authentication – Users clock in/out or access secure areas via fingerprint or card.
Data Storage & Transfer – Logs stored locally; transferrable via network or USB.
Control & Rules – Configure schedules, anti-passback, alarms, and remote access.
Ideal Applications
The ZKTeco F16 is suitable for:
Corporate and SME offices.
Educational institutions.
Healthcare facilities.
Residential and commercial complexes.
Warehouses and industrial plants.
Why Choose Rittotechnologies & ZKTeco East Africa
Authenticity Assured – Devices sourced from official distributors.
Full Warranty & Support – Manufacturer-backed service and updates.
Local Adaptation – Configured for Kenya’s climate, power, and network systems.
Seamless Integration – Compatible with ZKBioTime, ZKBioAccess, ADMS, and more.
Our Complete Service Package
Nationwide delivery of authorized ZKTeco F16 units.
Professional installation including wiring, mounting, and lock integration.
Enrollment, configuration, and system training for staff.
Fast local after-sales support for maintenance and expansion.
Enhance your access control and attendance system with the reliable ZKTeco F16 — fully supported by Rittotechnologies, Kenya’s trusted ZKTeco partner.
📞 Contact us today for customized proposals, site surveys, and tailored installation services.
